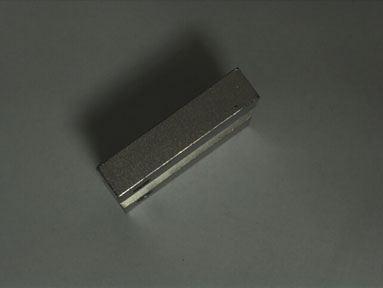

Aluminum Block Thickness Detection
posted on: 2024-05-13 10:35:10
Analysis: Using a ring light for bright field illumination, the edges of the aluminum block thickness, which have chamfers, are not adequately illuminated, resulting in inaccurate thickness detection.

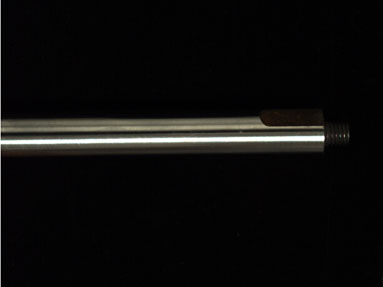

Detection of Outer Diameter of Smooth Iron Cylinders
posted on: 2024-05-13 10:34:33
Analysis: Using a conventional surface light source for backlighting results in a diffuse effect, causing a gray band along the edge of the cylinder with reduced sharpness.

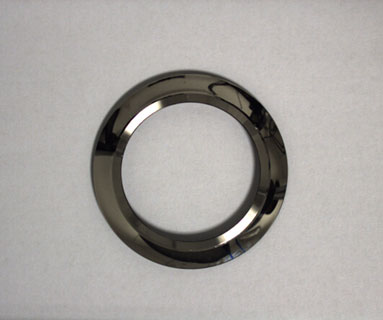

Detection of Surface Contamination on Metal Rings
posted on: 2024-05-13 10:33:15
Analysis: With conventional ring light illumination, glare spots may appear on the metal ring, making it difficult to detect surface defects.
Surface Character Detection on Button Batteries
posted on: 2024-05-13 10:32:11
Analysis: Using a ring light source, the specular reflection from the surface of the button battery does not enter the camera, while the intense diffuse reflection from the character portion is captured, resulting in a clearer contrast between the characters and the background.
posted on: 2024-05-13 10:26:38
Connector Leakage Detection
Detection Content: Connector Leakage Detection
Light Source Used: Dome Light Source
posted on: 2024-05-13 10:25:37

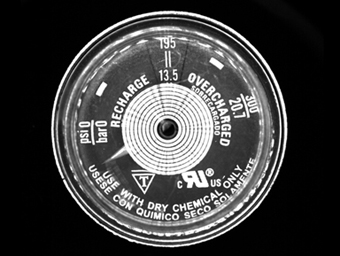

Analysis: When using a ring light source for illumination, glare spots may appear on the surface of the dashboard, affecting character separation.
Medicine Box Character Detection
posted on: 2024-05-13 10:24:10
Medicine Box Character Detection
Detection Content: Medicine Box Character Detection
Light Source Used: Bar Light Source
Glucose Syrup Liquid Level Height Measurement
posted on: 2024-05-13 10:23:39
Glucose Syrup Liquid Level Height Measurement
Detection Content: Glucose Syrup Liquid Level Height Measurement
Light Source Used: Parallel Plane Light Source
posted on: 2024-05-13 10:22:57
HBV Chip Detection
Detection Content: HBV Chip Detection
Light Source Used: Coaxial Light Source
Inspection of Drug Particle Shape
posted on: 2024-05-13 10:20:58
Inspection of Drug Particle Shape
Detection Content: Inspection of Drug Particle Shape
Light Source Used: Dome Light Source
Foreign Object Detection in Bottles
posted on: 2024-05-13 10:19:31
Foreign Object Detection in Bottles
Detection Content: Foreign Object Detection in Bottles
Light Source Used: Ring Light Source
Detection of Steel Stamp on Medicine Box
posted on: 2024-05-13 10:18:24
Detection of Steel Stamp on Medicine Box
Detection Content: Detection of Steel Stamp on Medicine Box
Light Source Used: Ring Light Source
