Magnetic Cylinder and Arc Edge Size Detection
Experimental Requirements
- Simultaneously detect cylinder and arc edge dimensions.
- The detection result requires clear measurement of the cylinder and arc edge dimensions with no shadows.
- Static shooting.
Unlit Product Appearance

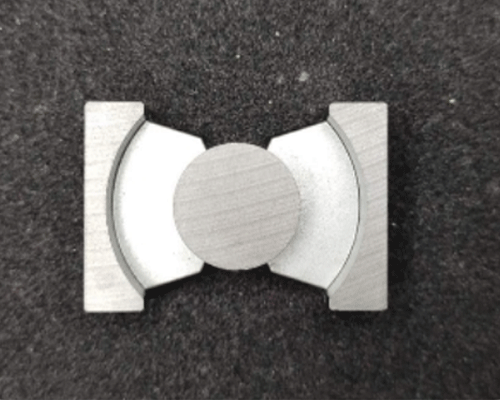

Due to shadowing at the edges of the magnet, it may lead to unclear edges when illuminated, which can affect detection. Therefore, a white ring light source was used, with high-angle direct lighting, ensuring that the cylinder and arc edge dimensions are clearly measurable and free of shadows.
Lighting Effect Comparison
Here's a comparison between indoor ambient lighting and the effect under a ring light source.
- Indoor Lighting: Shadows are present, leading to unclear edges.

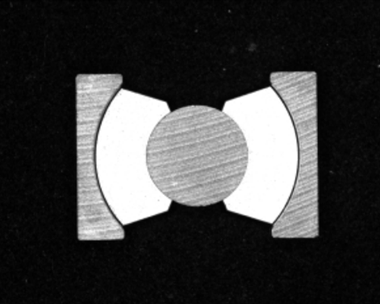

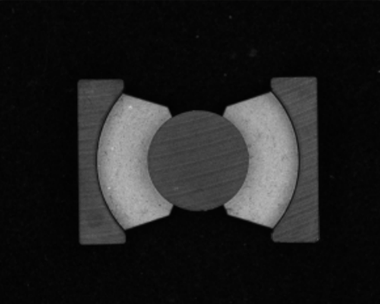

- Under Ring Light: Edges are clear and shadow-free.
Conclusion
- Lighting: For size detection, shadows must be avoided.
- Static Shooting: The setup involves capturing static images.
- Prefer Ring Lights: For optimal results in reducing shadows.
General Light Source Selection Process
- Understand Project Requirements: Define the detection or measurement goals.
- Analyze the Object and Background: Identify the optical phenomena with the greatest imaging contrast between the object and background.
- Determine Light Source Type and Color: Based on the relationship between the light source and the target, preliminarily determine the type and color of the light source.
- Conduct Light Source Testing: Use actual light sources to determine the ideal lighting configuration.
- Adapt to Site Conditions: Ensure the lighting setup aligns with the actual conditions of the client's product.
FALenses Technology specializes in providing machine vision core hardware. You can go to the official website of FALenses Technology at https://www.falenses.com/ for more information.
