Character Detection for Brushed Metal Components
Case Study Explanation
This case involves components like the caps of thermos cups. The goal is to detect characters on a product where the surface has a brushed metal finish. When using different lighting directions, the brushed texture can reflect light in various ways, creating unique effects. However, due to variations in the orientation of parts during inspection, a light source is required that produces consistent results regardless of the angle of incidence.
Unlit Product Appearance

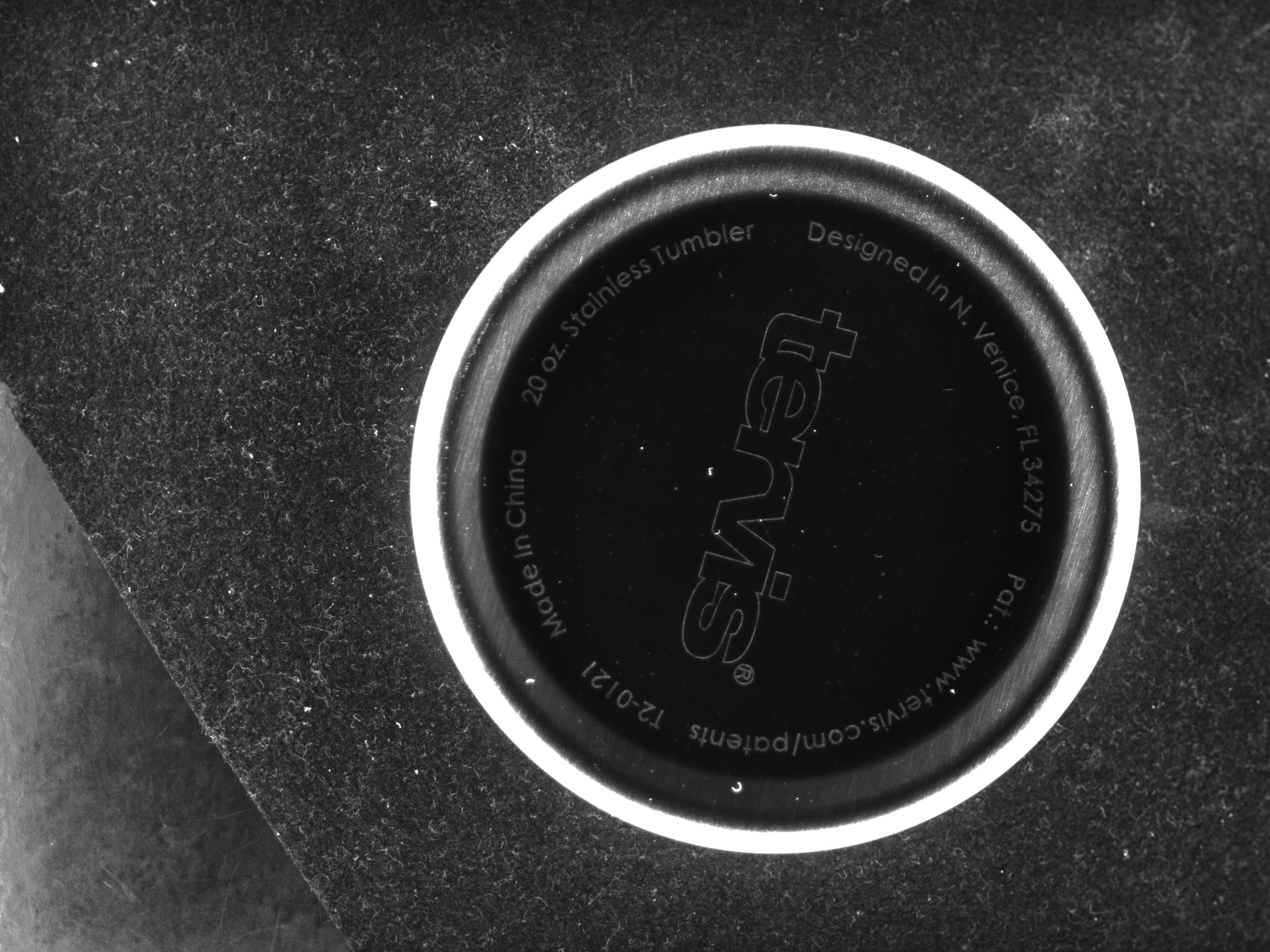

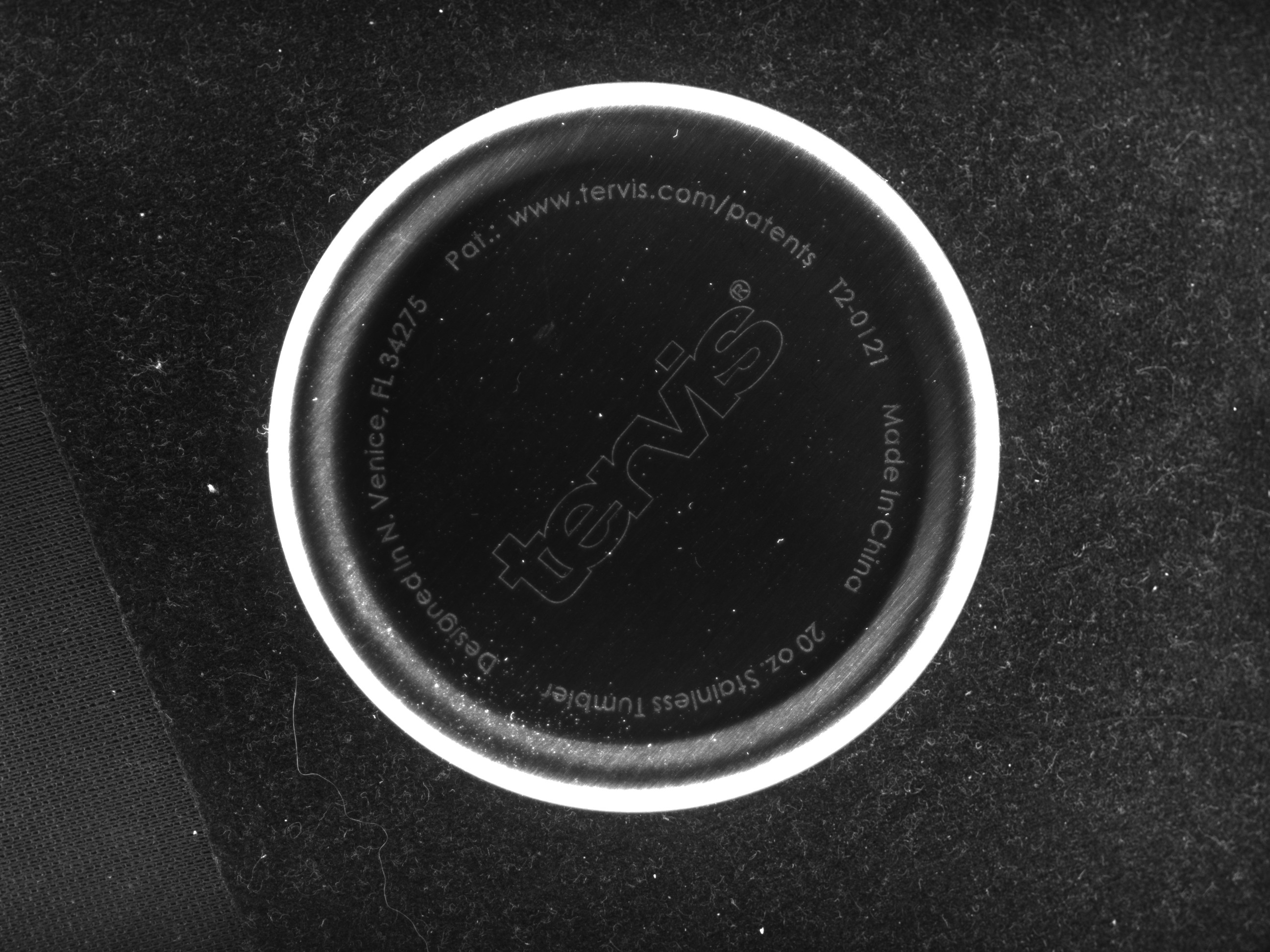

Case Images with Different Lighting
- Vertical Direction: The light reflects differently, affecting the visibility of characters.
- Horizontal Direction: The brushed texture creates distinct lighting effects.
Using a specially developed light source ensures consistent imaging regardless of the orientation of the incoming parts.

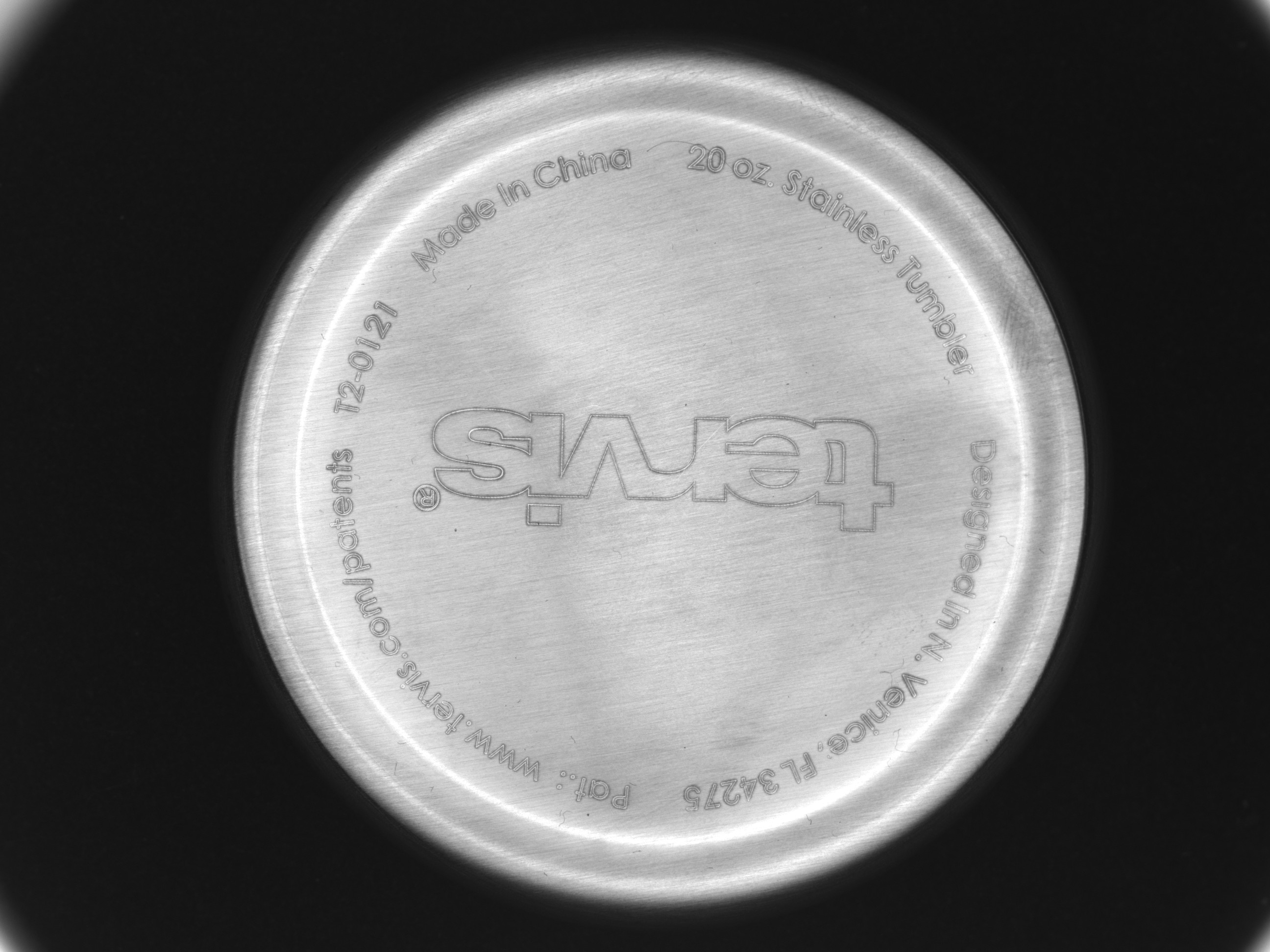

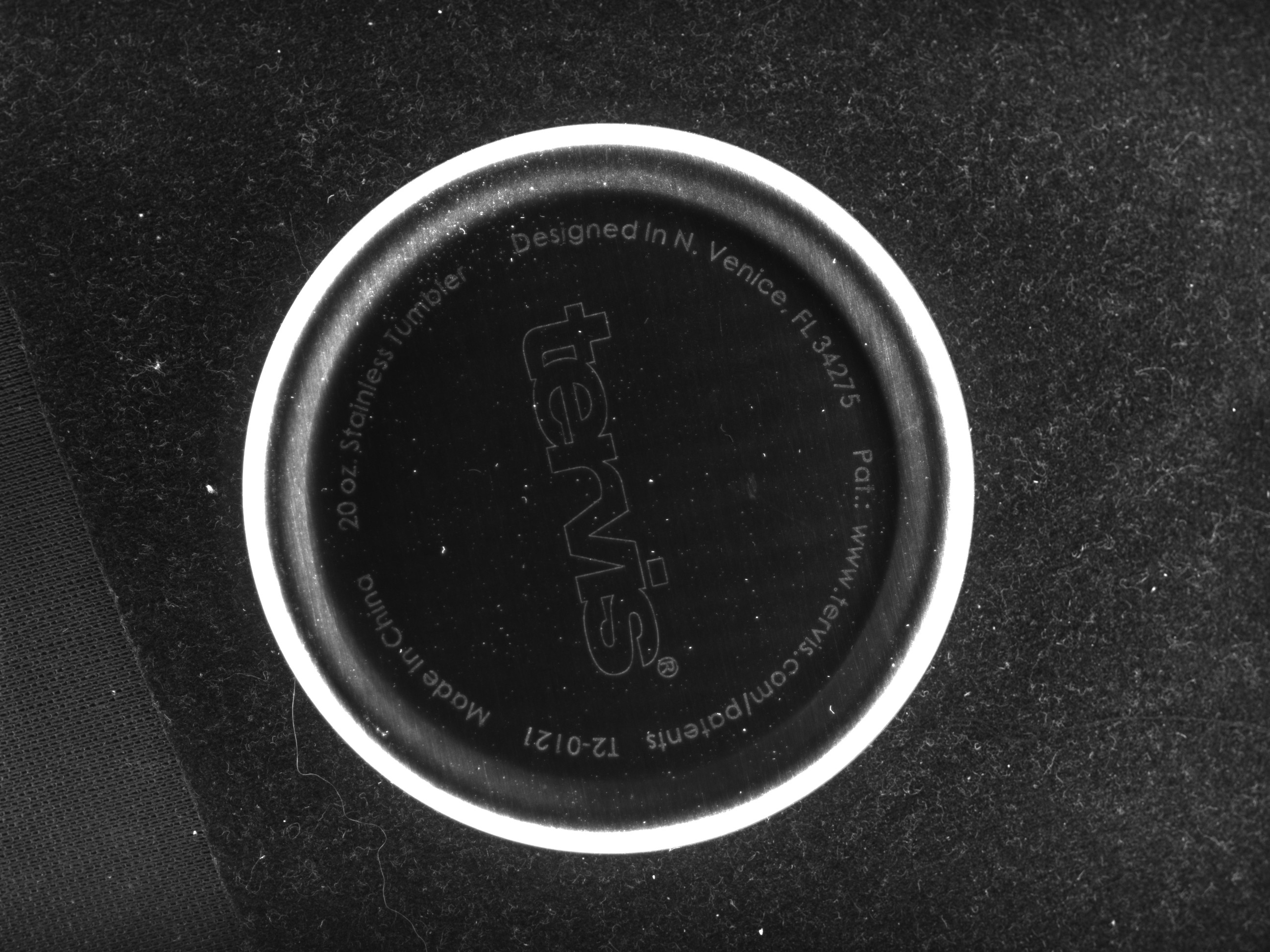

Case Images with Consistent Lighting
These images demonstrate how the special light source allows for consistent results, even with variations in the brushed texture's direction.
Detection Summary
- Character Detection with Brushed Metal Finish: Different lighting directions can produce varying effects on brushed metal.
- Consistent Results: The goal is to ensure consistent imaging regardless of the part's orientation during inspection.
General Light Source Selection Process
- Understand Project Requirements: Define the detection or measurement goals.
- Analyze the Target and Background: Identify the optical phenomenon that creates the most significant contrast between the target and background.
- Determine Light Source Type and Color: Determine the light source type and color based on the relationship between the light source and the target.
- Test with Actual Light Sources: Conduct tests to determine the ideal lighting setup.
- Adapt to Site Conditions: Ensure the lighting setup is suitable for real-world conditions at the inspection site.
