Understanding Telecentric Lenses Through Ten Key Parameters

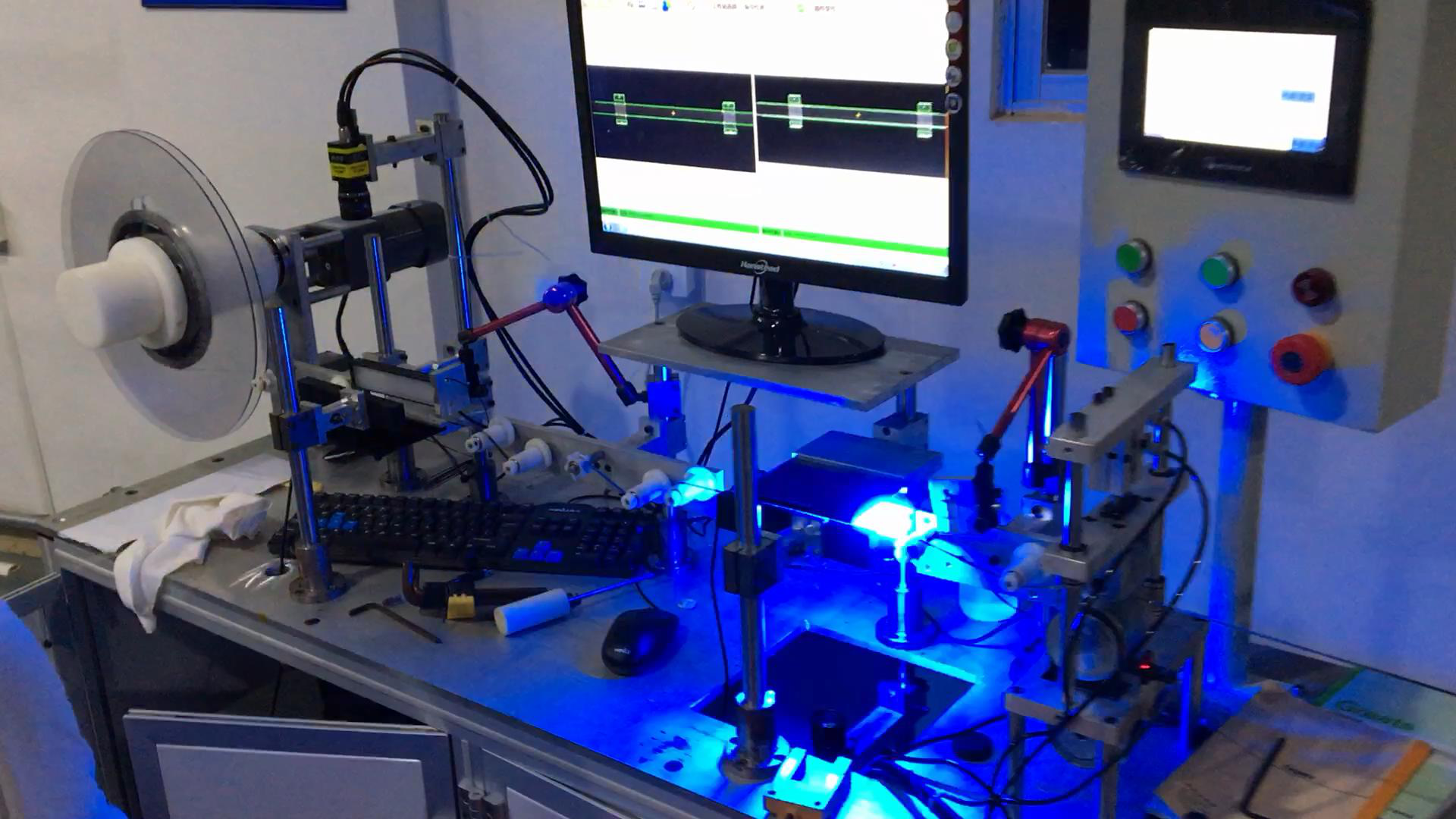

Telecentric lenses are specialized optical lenses designed to correct the parallax effect inherent in traditional lenses. Compared to standard lenses, telecentric lenses offer significant advantages in magnification, distortion, parallax, and resolution. Below are the ten key parameters to understand when selecting telecentric lenses.
Parameter 1: Telecentricity
Telecentricity measures the magnification error in an object. A higher telecentricity indicates less magnification error. Telecentric lenses have principal rays that are parallel to the optical axis, ensuring consistent magnification. A simple diagram can help visualize telecentricity.
Parameter 2: Resolution (μm)
Resolution is the scale of the optical system, indicating the number of black-and-white line pairs per millimeter that the lens can resolve. It represents the smallest distance between two points that can be distinguished before becoming indistinct. A 1μm resolution means the minimum distinguishable distance between two points is 1μm.
Parameter 3: Line Resolution (Lines/mm)
Line resolution indicates the number of black-and-white stripes that can be distinguished within a 1mm area. It is measured in lines per millimeter. For example, 100 lines/mm indicates that you can distinguish lines with a 10μm interval, where the width of each line is 5μm.
Parameter 4: Distortion (%)
Distortion refers to the optical aberration that makes straight lines appear curved. It can be either pincushion distortion (lines bending toward the center) or barrel distortion (lines bending outward). This distortion affects the accuracy of measurements and must be minimized in telecentric lenses.
Parameter 5: Depth of Field
Depth of Field (DOF) is the distance range where objects appear in sharp focus. It is the distance between the nearest and farthest points that remain in focus. The DOF can vary depending on factors like aperture and magnification. The formula for calculating DOF is:
DOF=2×Permissible COC×Effective F/Optical Magnification2
Parameter 6: Depth of Focus
Depth of focus refers to the range on the image side where focus remains sharp. It is the distance between the nearest and farthest points on the image side that remain in focus.
Parameter 7: Optical Magnification
Optical magnification is the ratio of the image size to the object size. It describes how much an object is magnified through the lens.
Parameter 8: Resolution
Resolution represents the minimum distinguishable distance between two points on an object. The following formula is often used to calculate resolution:
Where is the wavelength of light (typically 550nm), and NA is the numerical aperture.
Parameter 9: Edge Illumination
Relative illumination measures the percentage of illumination from the center to the edge of an image. A lower relative illumination indicates less light at the edges, which can affect image quality.
Parameter 10: Zoom Lens
A zoom lens has adjustable focal lengths, allowing for variable magnification and field of view. It is ideal for applications requiring flexible magnification. If the focus remains constant while zooming, it is called a parfocal lens; otherwise, it is a varifocal lens.
Understanding these parameters can help select the right telecentric lens for your application, ensuring optimal performance and accuracy.
