Magnetic Cylinder and Arc Edge Size Detection

Experimental Requirements



·Simultaneously detecting cylinder and arc edge dimensions

·The test results require clear and measurable dimensions of the cylinder and arc edge, with no shadows

·Static shooting





The Effect Without Light Sources








Due to the shadow on the edge of the magnet, the edge may not be clear when illuminated. Therefore, a white circular light source was used, which uses high angle direct illumination. This way, the dimensions of the magnet's cylinder and arc edge will be clear and measurable, and there will be no shadows.







 Comparison of lighting effects





 2.png   3.png

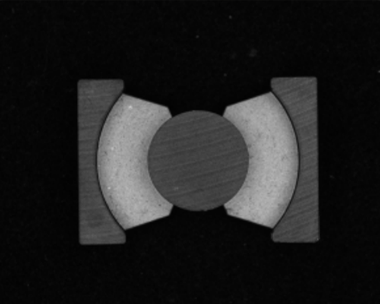

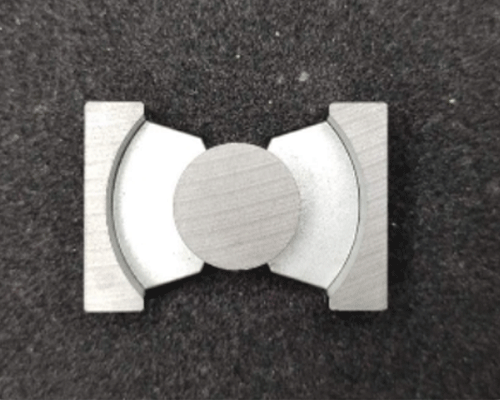

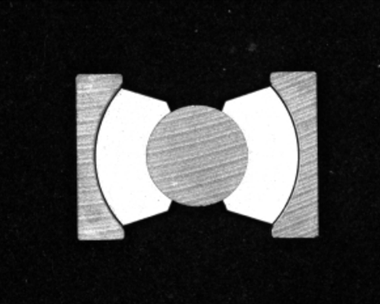

          The effect under indoor lighting                         The effect under circular light source





In Summary



·Lighting: Size inspection, no shadows allowed;

·tatic shooting;

·Try to use circular light sources as much as possible.





The general process of selecting a light source



·Understand project requirements and clarify the goals to be tested or measured.

·Analyze the difference between the target and background, and identify the optical phenomenon with the greatest imaging difference between the two.

·Based on the coordination between the light source and the target, preliminarily determine the type and color of the light source.

·Use actual light source testing to determine the lighting method that meets the requirements.

·Determine the customer's product based on the actual situation on site.
