Selecting the right industrial camera and lens for your machine vision system is crucial for achieving high-quality imaging results. This guide explores key aspects of industrial lens selection and camera matching to help you make informed decisions.

Understanding Optical Lenses

Optical lenses, often called camera lenses or photographic lenses, are designed for optical imaging. They play a critical role in machine vision systems, influencing resolution, contrast, depth of field, and various aberrations. The quality of the lens can significantly impact imaging quality and system success. Here are some key points to consider:

• Lenses as Optical Components: In machine vision, lenses are like the eye's crystalline lens; without them, cameras would produce unclear or blank images.
• Quality and Variance: Lens quality can vary greatly, with high-quality lenses delivering better image clarity. Proper lens selection is crucial to avoid image distortion and other issues.

How to Select Industrial Cameras

Industrial cameras replace the human eye in assembly lines for measurement and judgment, converting visual targets into image signals. These signals are then processed by a specialized image processing system to extract relevant features and control equipment based on the results. Here are key considerations for choosing industrial cameras:

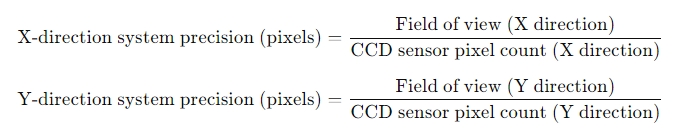

• System Precision and Camera Resolution: Determine system precision requirements and camera resolution. You can use these formulas to estimate system precision:

  ​

  Consider sub-pixel techniques for enhanced precision.

• System Speed and Camera Frame Rate: Determine system speed requirements. The system speed encompasses both imaging and detection speed. Although you can theoretically calculate imaging speed using asynchronous triggering and shutter speed, real-world tests with software are the best way to determine if the system meets requirements.

• Compatibility with Image Acquisition Cards: Ensure compatibility between the camera and the image acquisition card. Key factors include:

  • Video Signal Compatibility: For black-and-white cameras, formats like CCIR and RS170 (EIA) must be supported by the acquisition card.
  • Resolution Compatibility: Acquisition cards only support certain resolution ranges.
  • Special Features Compatibility: If your camera has special features (e.g., multiple cameras shooting simultaneously), ensure the acquisition card supports these features.
  • Interface Compatibility: Match camera and acquisition card interfaces, such as CameraLink, GigE, CoaXPress, or USB3.0.

• Price Considerations: Once your detection needs are met, you can then consider price and budget constraints.

Example Scenario

To illustrate, consider a system designed for size measurement on a production line. The product is 18mm x 10mm with a precision requirement of 0.01mm and a speed of 10 pieces per second. Given these constraints, you might choose a line scan camera for high speed. If the field of view is set to 20mm x 12mm for flexibility, and you can achieve good image quality (e.g., with backlighting), you might need a camera with a minimum resolution of 1000 x 600 pixels and a frame rate of 10 frames per second or higher. This helps you determine the appropriate resolution and frame rate to meet your requirements.

By considering these factors, you can effectively select the right industrial cameras and lenses for your machine vision system, ensuring optimal performance and image quality.
