What is a Surface Light Source? What Can It Detect?

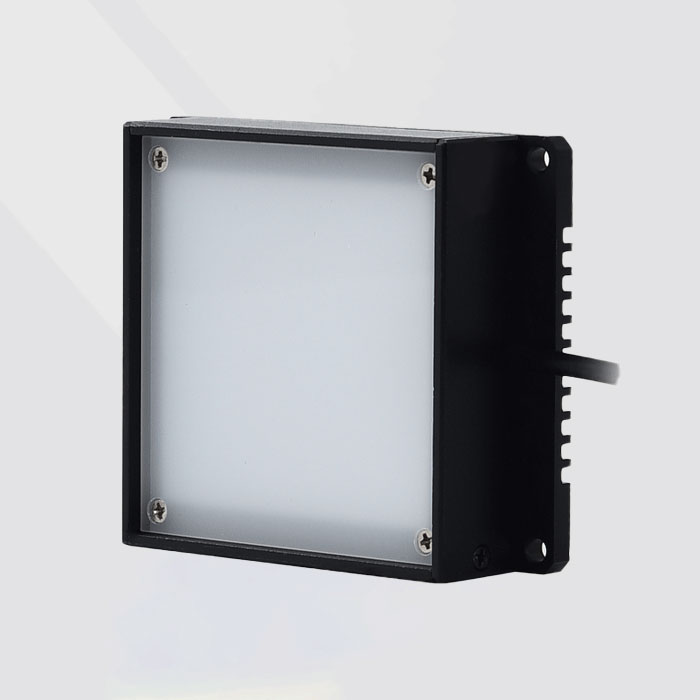

A surface light source is a commonly used illumination type in machine vision inspection. As the name suggests, it has a flat, planar shape. This type of light source is created by evenly distributing LEDs across the base of the light, with a structure that ensures even light distribution through diffuse reflection, resulting in a uniform illumination over the surface. It is typically used in applications where contour and outline detection is required.
Specifications for Surface Light Sources:
Surface light sources come in various sizes, providing flexibility in terms of illumination area. Common sizes include: 27x27, 42x65, 50x53, 70x70, 79x79, 103x106, 103x159, 156x159, 156x212, 209x212, 209x265, 209x318, 262x318, 315x318, and 315x424, among others. Additionally, these sizes can be customized based on client requirements.
Light Color Options:
Surface light sources typically offer four color options: red, green, blue, and white. However, other colors can be customized to meet specific client needs.
What Can Surface Light Sources Detect?
Surface light sources are used in a variety of machine vision inspection applications, thanks to their ability to provide even illumination across a wide area. Here's a list of what they can be used to detect:
- Outline and Contour Measurement: Useful for measuring the external contours of objects.
- Machining Dimension Measurement: Ideal for checking the dimensions of machined parts.
- Glass Bottle Damage Detection: Can detect cracks or damage in glass bottles.
- Foreign Object Detection: Suitable for identifying foreign objects or impurities.
- Scratch and Stain Detection on Transparent Objects: Can detect scratches and stains on transparent objects.
- Internal Foreign Object Detection: Useful for detecting internal defects or impurities.
- Damage Detection: Capable of identifying damage in various objects.
Overall, surface light sources are versatile and widely used in machine vision inspections due to their consistent and even illumination, which is crucial for accurate image acquisition and analysis. Whether it's for quality control in manufacturing or inspection of delicate materials, these light sources play a key role in ensuring accurate and reliable results.
