What is a Ring Light Source? What Can It Detect?

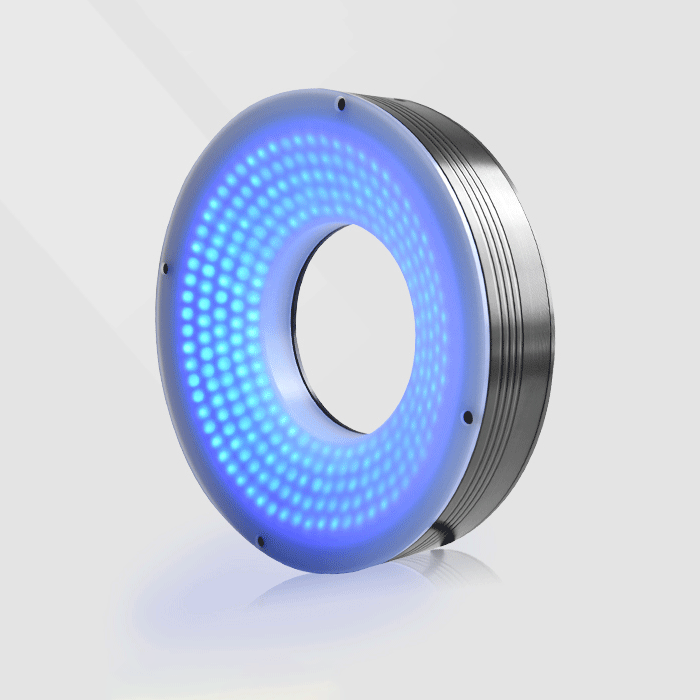

A ring light source is a commonly used industrial light source in machine vision inspection. As the name suggests, it's circular or ring-shaped. It consists of an array of high-density LEDs designed with optimized structure, providing stable performance, high brightness, and ease of installation.
Features of Ring Light Sources:
Ring light sources can be configured with different illumination angles and colors, allowing for direct lighting without creating shadow effects. This feature helps emphasize imaging characteristics. Additionally, they can be combined with diffusers to make the emitted light more uniform and soft.
Light Angle Options and Sizes:
Ring light sources offer a range of illumination angles, including 0°, 20°, 30°, 45°, 60°, 70°, 80°, and 90°. The diameter sizes also vary widely, ranging from 30+ to 250+, with additional customizations available to meet specific client requirements.
Color Options:
Ring light sources typically offer four color options: red, green, blue, and white. However, other colors can be customized based on client requirements.
What Can Ring Light Sources Detect?
Given their versatility, ring light sources are used in a variety of machine vision applications. Here's what they can be used to detect:
- IC and Semiconductor Product Character Detection: Ideal for inspecting the appearance and text on integrated circuits (ICs) and other semiconductor products.
- PCB Circuit Board and Component Inspection: Useful for detecting issues with printed circuit boards and their components.
- General Appearance Inspection: Applicable for general appearance inspections, including identifying scratches, defects, or other irregularities.
Overall, ring light sources are adaptable and useful in a wide range of inspection scenarios, from semiconductor components to general appearance checks. Their ability to provide even illumination while avoiding shadows makes them a popular choice in machine vision applications.
