What is the Difference Between Line Light Sources and Point Light Sources?

What is the Difference Between Line Light Sources and Point Light Sources?

Line light sources and point light sources are common types of lighting used in machine vision inspection. Choosing the right light source requires understanding the function and differences between them. Let's explore these differences and determine which type of light source is suitable for different applications.

Differences Between Line Light Sources and Point Light Sources:

1. Design and Shape:

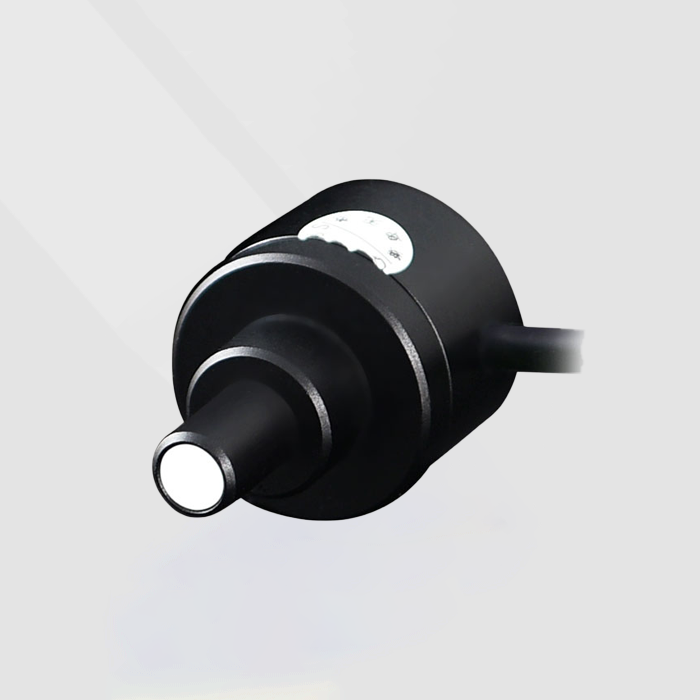

   • Point Light Source: As the name suggests, it has a small, point-like emitting area, providing high light intensity in a concentrated area. It is often used independently or in combination with microscopes or coaxial lenses in machine vision systems.

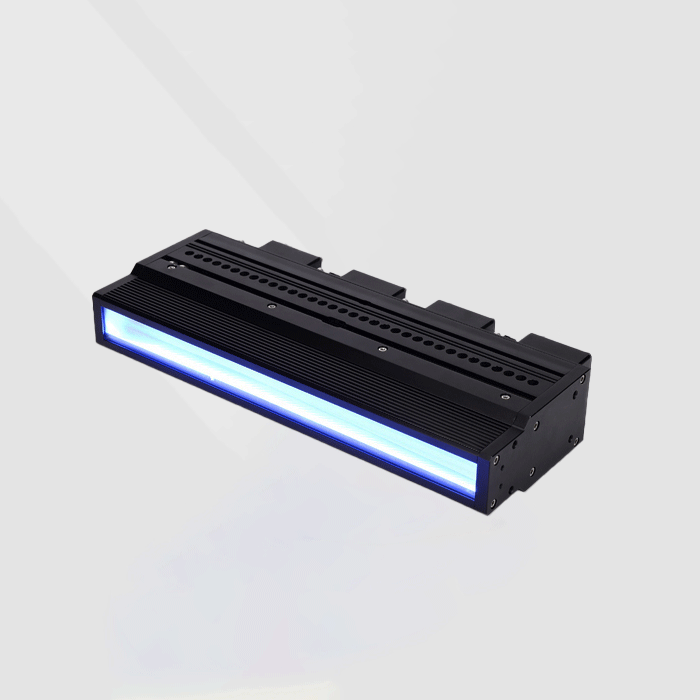

   • Line Light Source: This light source focuses high-brightness LEDs into an ultra-high-intensity linear beam through special cylindrical lenses. It has a larger emitting area and can be customized in length according to requirements.

2. Applications and Detection Range:

   • Point Light Source: Ideal for detecting small components, it is suitable for visual systems with limited space, LCD panel inspection, and positioning of MARK points.
   • Line Light Source: Often used for inspecting large-format prints for surface defects, measuring large-format dimensions, inspecting PCB board circuits, and checking the appearance of LCD and TP screens.

3. Shape and Structure:

   • Point Light Source: The emitted light has a point-like shape, with intense brightness in a small area.
   • Line Light Source: The light has a linear shape, providing uniform illumination over a longer area.

4. Specifications and Customization:

   • Point Light Source: Generally has smaller sizes and may come in various forms to fit compact spaces.
   • Line Light Source: Offers longer lengths and can be customized in terms of size and color.

5. Light Colors and Options:

   • Both line light sources and point light sources generally offer a selection of red, white, blue, and green colors. Custom colors can also be made available upon request.

Conclusion:

Line light sources and point light sources serve different purposes. The choice between them depends on the specific requirements of the inspection task. If you are uncertain about which light source is suitable for your application, you can send samples to FALenses Technology's laboratory for a free lighting test and selection. This way, you can get personalized advice to find the most appropriate light source for your needs.
