What Is a Tunnel Light Source? In Which Fields Is It Used?
In machine vision, light sources such as ring lights, bar lights, and coaxial lights are commonly used. However, there are other specialized light sources that are less common but essential in certain applications. One of these is the tunnel light source. Let's explore what a tunnel light source is and the fields where it is commonly used.

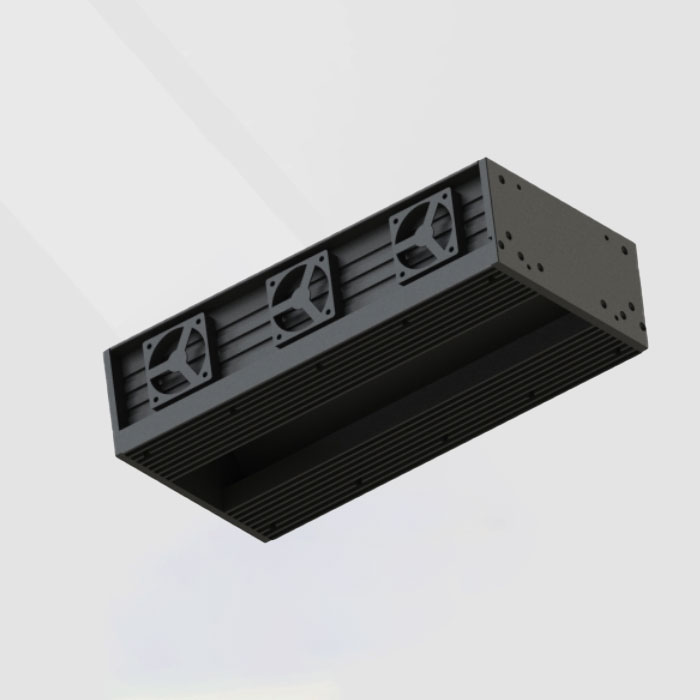

What Is a Tunnel Light Source?
A tunnel light source is designed with a unique structure where the light is reflected through a curved or arched panel, providing a higher degree of uniformity and brightness. This design creates a tunnel-like illumination effect, hence the name "tunnel light source." The high uniformity and brightness make it suitable for specific applications that require consistent and even lighting.
Key Characteristics of a Tunnel Light Source:
- High Uniformity: The light is reflected to create a more uniform distribution across the illumination area.
- High Brightness: The design enhances brightness, making it suitable for applications requiring strong illumination.
- Curved Structure: The curved or arched panel helps focus and reflect light more efficiently.
What Are the Main Applications of Tunnel Light Sources?
Tunnel light sources are commonly used in the following fields:
1. PCB Inspection
Tunnel light sources are ideal for inspecting printed circuit boards (PCBs) for defects, as they provide consistent lighting across the board's surface.
2. Printing and Graphics Inspection
In printing and graphics-related industries, tunnel light sources are used to detect defects, misprints, or inconsistencies in printed materials.
3. Material Surface Inspection
Tunnel light sources are also used for inspecting various material surfaces to identify defects, scratches, or other irregularities.

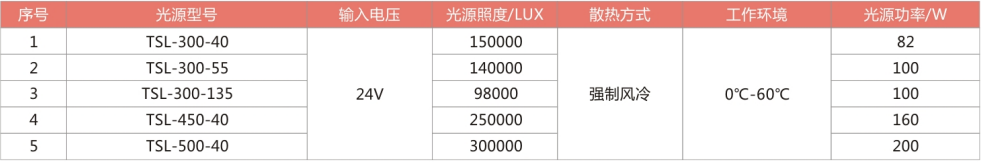

Specifications of Tunnel Light Sources:

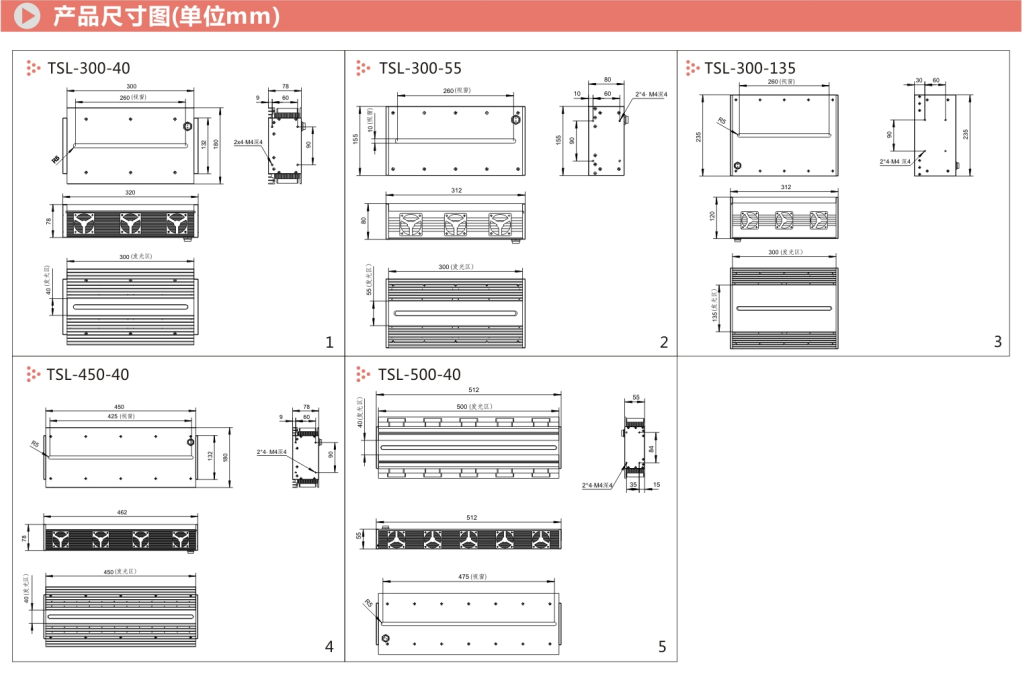

Here are typical specifications for tunnel light sources, including voltage, power, and dimensions:
Conclusion:
Tunnel light sources provide high uniformity and brightness, making them ideal for applications that require consistent and even lighting, such as PCB inspection and printing defect detection. The unique curved structure of the tunnel light source allows for efficient light reflection, contributing to its high brightness.
If you're considering using tunnel light sources in your application, companies like FALenses Technology offer a variety of options and provide free testing services to help determine the best light source for your specific needs. By choosing the right light source, you can improve the accuracy and reliability of your machine vision system.
FALenses Technology specializes in providing machine vision core hardware. You can go to the official website of FALenses Technology at https://www.falenses.com/ for more information.
