Industrial Telecentric Lenses

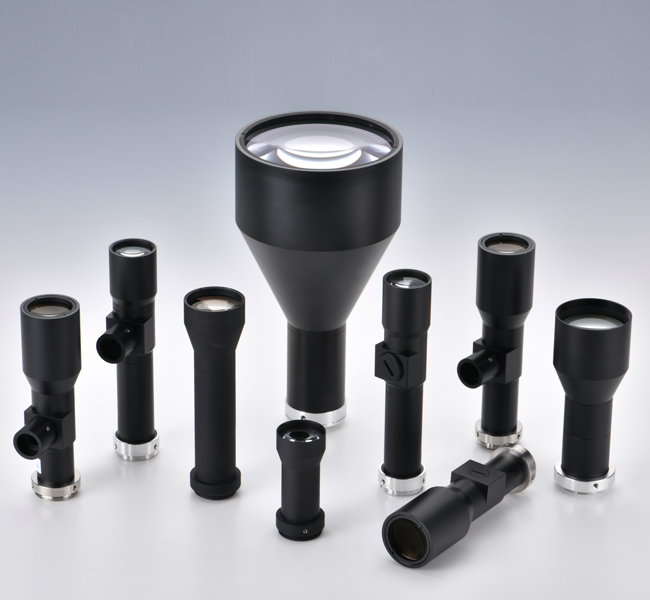

An industrial telecentric lens is a lens used in high-precision machine vision applications, known for its continuous zoom, fast focusing, and high resolution within its focal range. Adjusting the focal length of industrial telecentric lenses is a crucial skill for users. This article outlines the steps for adjusting the focal length of an industrial telecentric lens.

I. Preparatory Work

To adjust the focal length, you need the following items:

• Industrial Telecentric Lens: Prepare the lens that requires focal length adjustment.
• Display Screen: Used to observe image clarity during adjustment.
• Steel Ruler: Or a standard object for testing lens resolution and focus distance.
• Testing Instruments: Such as an eyepiece or a digital microscope for precision measurements and adjustments.

II. Adjusting Focal Length

1. Install the Industrial Telecentric Lens Mount the industrial telecentric lens onto a high-definition camera, and turn on the camera to observe the image.

2. Select the Appropriate Focal Length The appropriate focal length depends on the size and distance of the target to be inspected. Generally, a smaller focal length provides a larger field of view, while a larger focal length offers a smaller field of view.

3. Adjust the Stop Ring Adjust the stop ring to set the focal length. The stop ring is a fine adjustment component used to adjust the focus distance of the lens.

4. Focus Use the industrial camera and display screen to observe the image. When the focus is at its optimal position, the image should be as clear as possible.

5. Test and Adjust Use a steel ruler or a standard object to test, and adjust the focal length as needed. During testing, use testing instruments like an eyepiece or digital microscope for precise measurements and adjustments.

6. Recalibrate After adjusting the focal length, recalibrate the camera, equipment, and system to ensure stability and accuracy.

III. Precautions

• When adjusting the focal length of an industrial telecentric lens, handle it carefully to avoid damaging the lens.
• Ensure adequate lighting during adjustment to maintain image clarity and contrast.
• Follow the user manual's instructions to ensure proper operation.
• After adjusting the focal length, recalibrate the equipment and system to ensure stability and accuracy.

IV. Summary

Industrial telecentric lenses are highly precise optical components, and adjusting the focal length requires careful operation and professional knowledge. Prepare thoroughly before use, selecting appropriate testing instruments like an eyepiece or digital microscope for precision measurement and adjustment. During the adjustment process, pay attention to operational details and strictly follow the user manual's instructions. After adjusting the focal length, recalibrate the equipment and system to ensure stability and accuracy. Following these steps will help you achieve the best results with your industrial telecentric lens.
