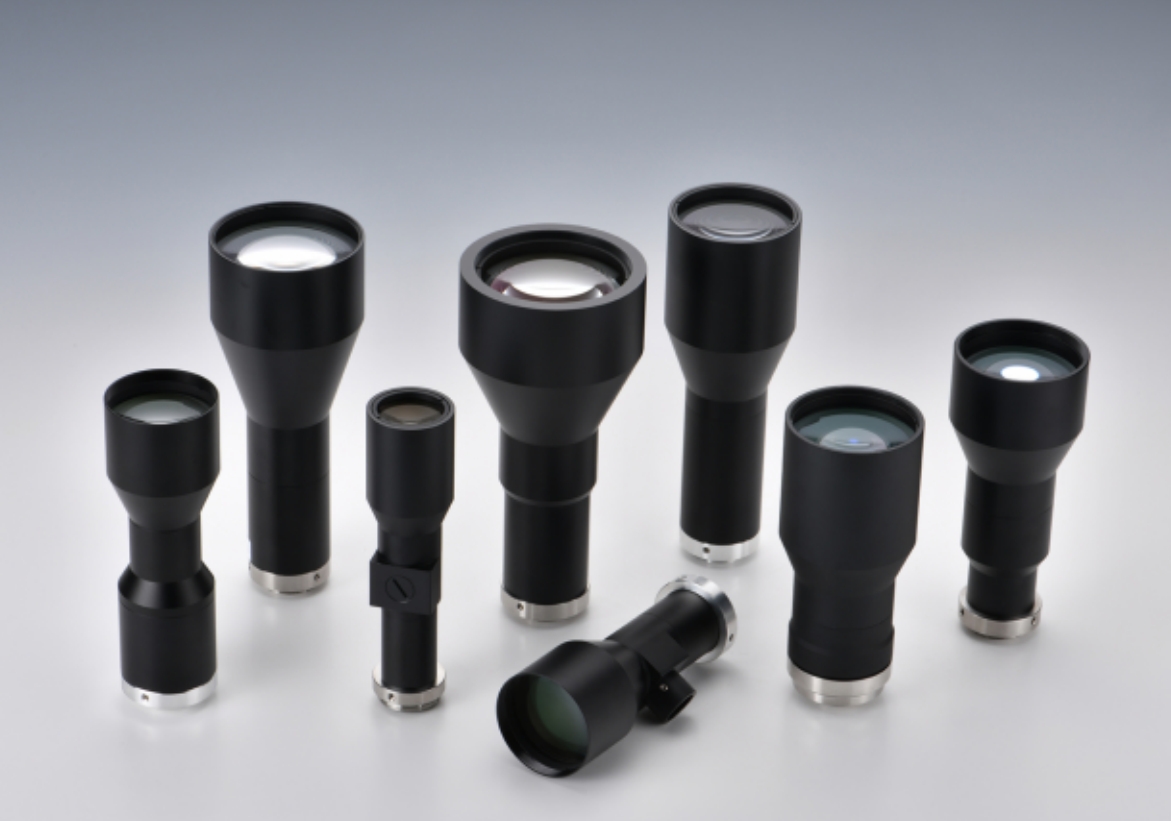

A telecentric lens is designed to correct the parallax issues found in traditional industrial lenses. It ensures that the magnification of the image remains constant within a certain object distance range, which is especially important when objects are not on the same plane. This unique design makes telecentric lenses ideal for machine vision applications that require high precision and minimal distortion.
Optical Characteristics
Telecentric lenses offer the following optical characteristics:
- High Resolution: Providing detailed images.
- Ultra-Wide Depth of Field: Allowing clear focus over a large depth range.
- Ultra-Low Distortion: Reducing image distortion.
- Parallel Optical Design: Ensuring consistent image magnification across the field of view.
Principles of Telecentric Lenses
Telecentric lenses are designed to address specific measurement and imaging challenges. Here's a breakdown of the various principles and their applications:
Image-Side Telecentric Optical Design
In this design, the aperture stop is placed at the object-side focal plane, making the chief rays parallel to the optical axis, with the convergence point at infinity on the image side. This design helps eliminate measurement errors caused by incorrect focusing on the image side.
Object-Side Telecentric Optical Design
In this design, the aperture stop is placed at the image-side focal plane, making the chief rays parallel to the optical axis, with the convergence point at infinity on the object side. This arrangement eliminates errors caused by incorrect focusing on the object side.
Double-Sided Telecentric Optical Design
This design combines both image-side and object-side telecentric principles, offering the benefits of both. It is particularly useful in visual measurement and inspection fields, allowing for accurate measurements even when object distances vary.
Applications of Telecentric Lenses
Telecentric lenses are widely used in various applications, including:
Precision Linear Measurement
In metrology, telecentric lenses are ideal for precise linear measurements, where standard front-facing observation is required without including side profiles. Telecentric lenses offer consistent imaging despite varying object distances, making them indispensable in precision measurement.
High-Precision Optical Systems
Traditional optical lenses may introduce errors due to distortion, perspective, or improper light source interference. Telecentric lenses help reduce or eliminate these issues, making them the preferred choice in precision optical measurement systems.
Visual Measurement and Inspection
In visual measurement and inspection, telecentric lenses are used to inspect objects with high precision, particularly when objects are not precisely positioned or when measurement distances change frequently.
Conclusion
Telecentric lenses have become essential components in various precision optical systems and industrial applications. Their ability to maintain constant magnification and minimize distortion makes them ideal for applications requiring high accuracy and reliability. As technology continues to advance, telecentric lenses will play an increasingly important role in various industries, ensuring accurate and consistent imaging results.
