AOI Lights
FALenses Technology will be your best partner
Features：
◆Has all the characteristics of ring light source;
◆Use multi-colored light at different angles to make the image of the illuminated object more three-dimensional;
◆Each color can be controlled independently.
Application scope：
◆PCB surface solder detection;
◆Multi-level object surface defect detection;
◆Printed character detection;
◆Screening machines and other multi-station integration scenarios.
Naming rule:
R- 34- 75- R
Ring Light Outer diameter Illumination angle Luminous color

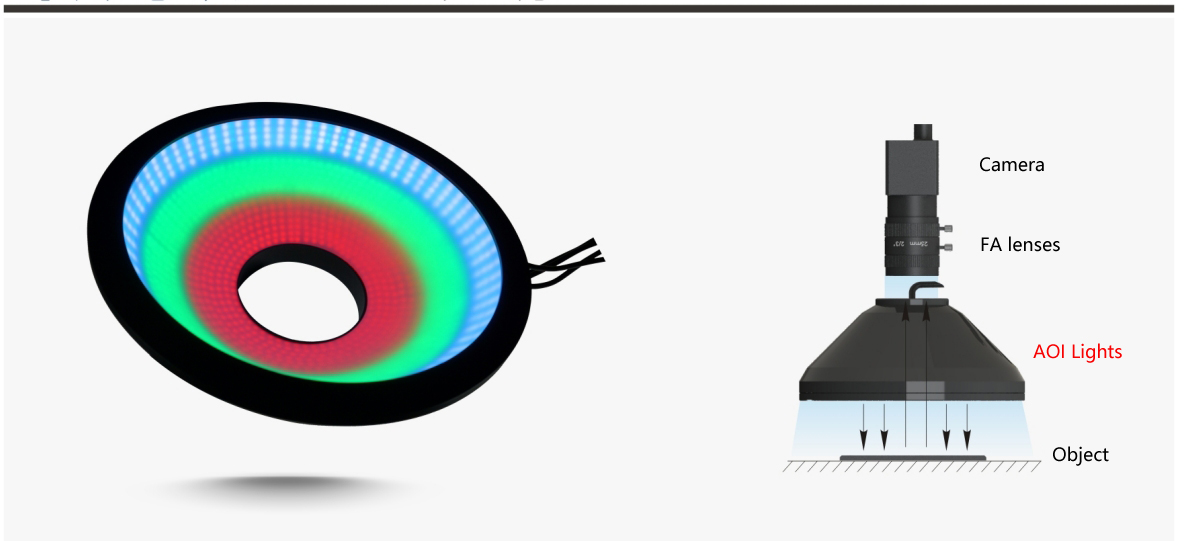

An industrial AOI ring light is a specific type of ring light designed for Automated Optical Inspection (AOI). It plays a crucial role in industrial manufacturing and quality inspection processes, especially in printed circuit board (PCB) production and electronic component inspection.
Key Features:
- Ring Design: This type of light provides uniform illumination around the inspection area, reducing shadows and uneven lighting, which improves inspection accuracy.
- High Brightness: AOI ring lights typically use high-brightness LEDs to ensure sufficient light for detecting small defects and fine details.
- Dimmable Functionality: Many AOI ring lights support adjustable brightness to suit different inspection needs. Some models also allow for adjusting the light angle or color for multi-angle, multi-color inspection.
- Low Heat Output: Due to the nature of LEDs, AOI ring lights produce less heat at high brightness levels, helping to maintain a stable inspection environment.
Common Applications:
- PCB Inspection: In PCB manufacturing, AOI ring lights provide uniform illumination to help detect issues like shorts, opens, and soldering defects.
- Electronic Component Inspection: AOI ring lights are used to check the quality and installation accuracy of electronic components to ensure proper assembly.
- Surface Defect Detection: This type of light can be used to detect surface scratches, dents, foreign objects, and other blemishes.
- Other Industrial Inspections: In other industrial fields that require high-precision inspections, such as automotive parts manufacturing and medical device production, AOI ring lights play a significant role.
By providing uniform and stable illumination, AOI ring lights help industrial inspection systems identify and analyze various defects, thereby improving product quality and production efficiency.
